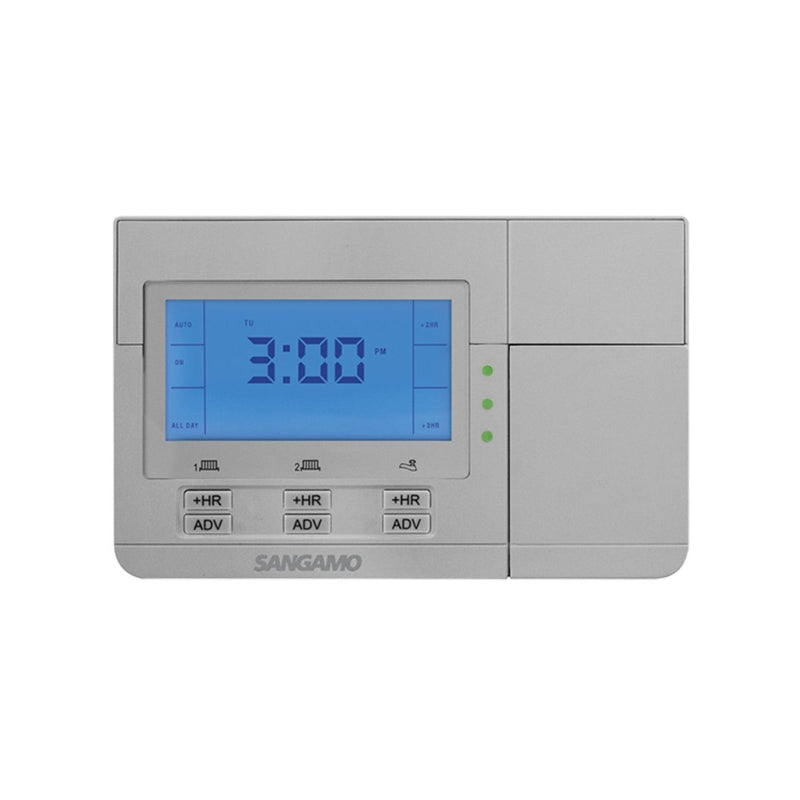

Sangamo Three Channel IP30 Digital Programmer Silver - CHPPR3S

Product Overview

Sangamo are a UK manufacturer of time clocks/heating controls, thermostats, immersion controllers & programmers. The brand is also recognised for their Round Pattern Time Switches.

CHPPR3S - Three Channel Programmer

• 24 Hour, 5/2 Day and 7 Day Programmable
• 2 or 3 ON/OFF Periods
• 1,2 or 3 Hour Boost
• Holiday Mode
• Pre-Programmed Schedule Ready for Use
• Summer/Winter Time Change
• Backlit Display
• Suitable for Pumped Systems
• With/without Service Interval Function
• 2A Switch Rating 240vAC
• Standard wall plate - simple plug in and replace
• Programmable service interval function
• Modes Available: On, Off, Auto, All Day
• Ingress Protection: IP30
• Operating Temperature: 0°C to 40°C
• Dimensions: 140mm x 88.6mm x 32.1mm
• Material: ABS

Downloads

Download CHPPR3S Datasheet

Specification

IP Rating	IP30
Luckins Code	434561348
MPN	CHPPR3S
Old GTIN	5060654464363
Operating Temperature Maximum	40 °C
Operating Temperature Minimum	0 °C
Depth	32 mm
Height	89 mm
Weight	0.32 kg
Width	140 mm
