JCC V50 6W Fixed IP65 LED Downlight Brushed Nickel, Colour Adjustable - JC1001/BN

Product Overview

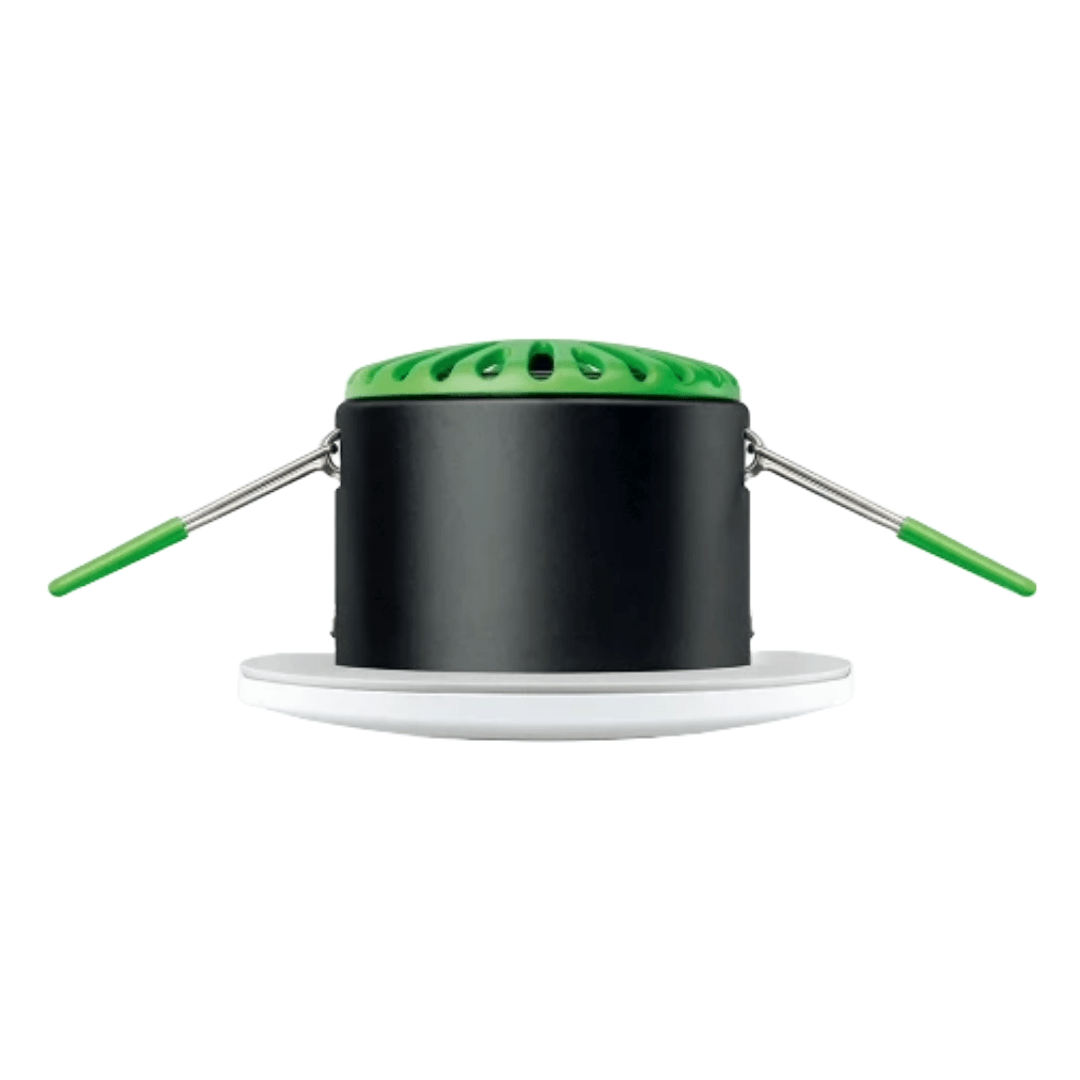

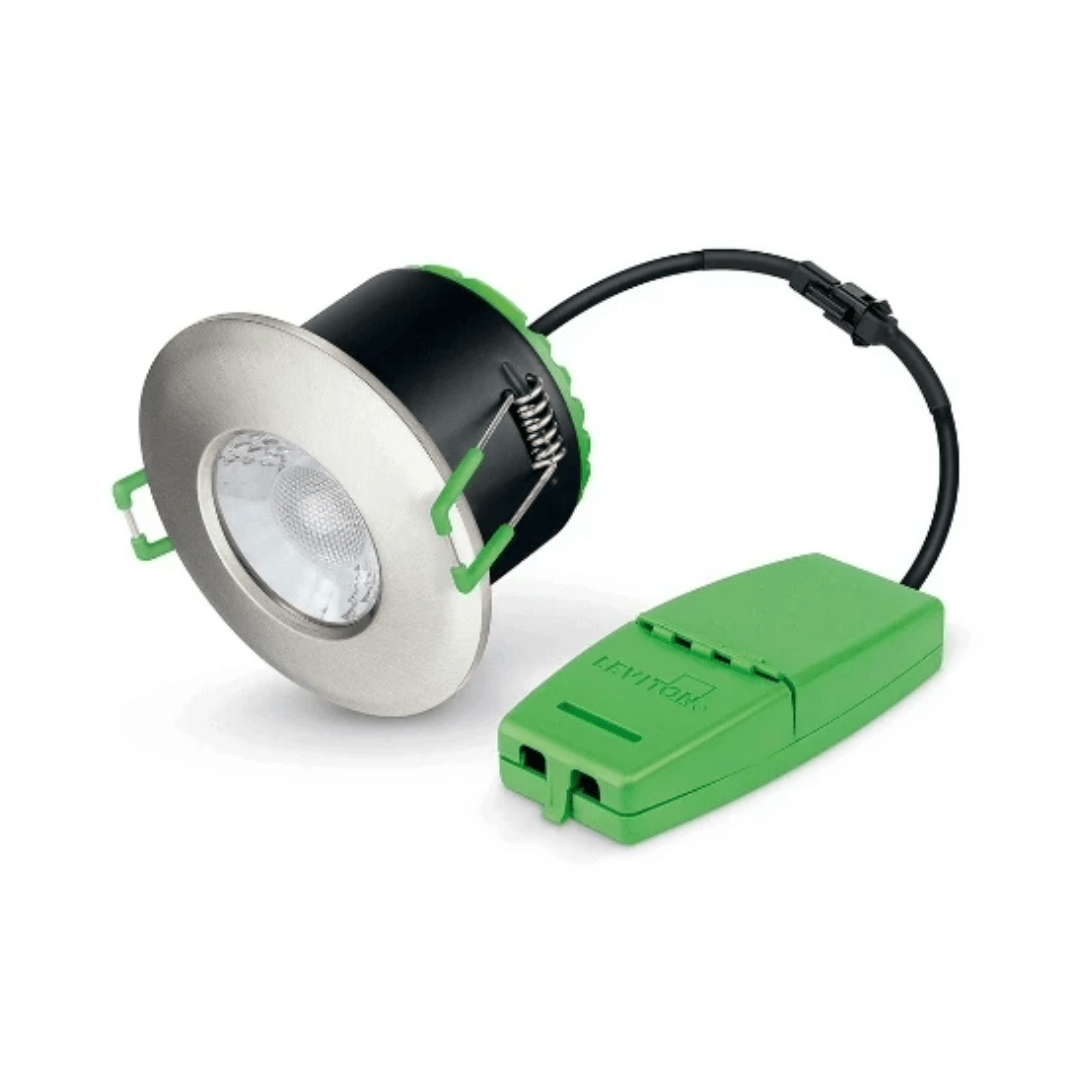

The JCC V50 Fire-rated LED Dimmable Downlight 6W 700lm IP65 Brushed Nickel (JC1001/BN) is a versatile lighting solution designed for efficiency and safety. With an actual lumen output of 650/700 and a lumens per circuit watt of 108/116, it offers bright illumination while being energy efficient. It features a two-color selectable white bezel design, adaptable for both 3000K and 4000K lighting needs. Engineered to fit within shallow 50mm ceiling voids, this ultra-low profile unit is fully fire-rated for 30, 60, and 90-minute ceilings, ensuring safety. Additionally, it's IP65 rated for bathroom use, includes strong spring clips for secure installation, and features a fast push-fit termination with a remote driver, supporting triac dimming for varied light preferences.

Downloads

Download JC1001-BN Product Manual

Download JC1001-BN Instruction Manual

Specification

Applicable Area	Bathroom, Kitchen
Bathroom Zones	1, 2, 3
Beam Angle	60 °
Bezel Supplied	Yes
Collection Name	V50
Colour Temperature	4000 K
Colour Temperature Minimum	3000 K
CRI	80
Cutout Diameter	70 mm
Dimmable	Triac Dimmable
Domestic or Commercial	Domestic, Office
Energy Rating	A+
Finish Or Colour	Brushed Nickel
Fire Rated	Yes
Fixed Or Adjustable	Fixed
Indoor or Outdoor Lighting	Indoor Lighting
IP Rating	IP65
Life Expectancy	51000 h
Light Colour	Warm White to Cool White
Luckins Code	405353255
Lumens	650
Material	Steel/Aluminium
MPN	JC1001/BN
Recess Depth	50 mm
Technology Type	Integrated LED
Voltage	240 V
Wattage	6 W
Diameter	84 mm
Height	68 mm
Weight	0.3 kg
Width	84 mm
