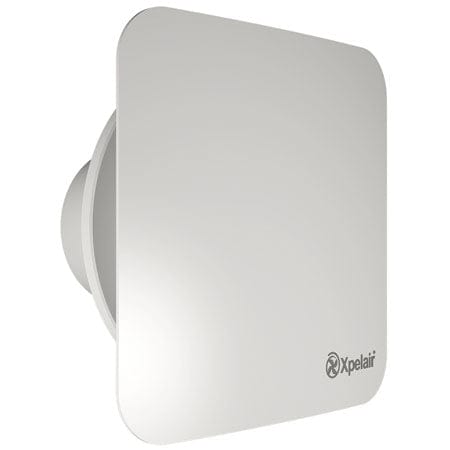

Xpelair C6HTS Simply Silent Contour 6/150mm Square Extractor Fan w/ Humidistat And Timer - 93176AW - Return Unit

Product Overview

Simply Silent Contour C6 square baffle fascia 6" 150mm extract fan, featuring Ghost Air Movement Technology for quiet running, with humidistat and timer control which boosts when humidity in the room increases while the timer continues to work after the fan is switched off.

The Simply Silent Contour C6 two-speed, intermittent extractor fan range has been designed to blend seamlessly with the surrounding decor. These fans control humidity, odours and mould growth effectively in kitchens, utility rooms, larger bathrooms and individual offices. Discover the beauty of silence.

Ghost Air Movement Technology enables quiet running

2 speeds 60l/s and 69l/s - selectable at install

Suitable for wall, ceiling, panel and window fitting

Knock-out section for side entry wiring

Complies with building regulations Part F and L

• Specification:

  Electrical power rating (W): 12.9 / 28.4
  Extract performance (FID, M³/h) Max/Min: 216 / 248
  Extract performance (FID, l/s) Max/Min: 60 / 69
  Sound pressure level db(A)@3m: 42.3 / 44.6
  Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
  Operation Speeds: 2
  UK Guarantee (Years): 2
  IPX Rating: 4
  Timer: Yes
  Humidistat: Yes

Electrical power rating (W): 12.9 / 28.4
Extract performance (FID, M³/h) Max/Min: 216 / 248
Extract performance (FID, l/s) Max/Min: 60 / 69
Sound pressure level db(A)@3m: 42.3 / 44.6
Specific Fan Power (SFP) (W/l/s): 0.22 / 0.41
Operation Speeds: 2
UK Guarantee (Years): 2
IPX Rating: 4
Timer: Yes
Humidistat: Yes
