Xpelair 93018AW Simply Silent DX100BTS 4"/100mm Timer Square Intermittent Extractor Fan - 93018AW - Return Unit

Product Overview

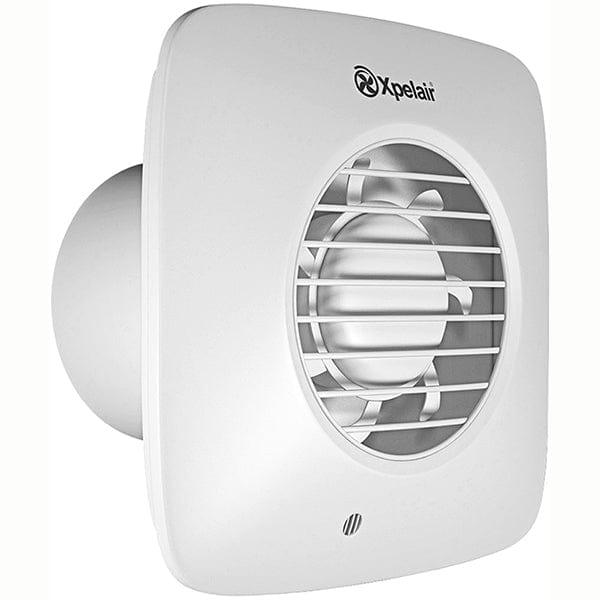

Xpelair 93018AW Simply Silent DX100BTS 4"/100mm Timer Square Intermittent Extractor Fan - 93018AW

Simply Silent DX100 square grille fascia 4" 100mm extract fan with integral over-run timer featuring Ghost Air Movement Technology for quiet running. For use with an external switch or sensor. Is typically connected to the room lighting circuit. The fan continues to work after the fan is switched off. The timer is adjustable at the installation from seconds to 30 minutes.

Features:

• Extremely quiet running - only 22dBA@3M at low speed
• Stylish traditional grille design available in square and round
• 2 speeds 15l/s and 21l/s - selectable at install
• Suitable for wall, ceiling, panel, and window fitting
• Complies with building regulations Part F and L

Specifications:

• Electrical power rating (W): 6.7 / 7.7
• Extract performance (FID, M³/h) Max/Min: 54 / 76
• Extract performance (FID, l/s) Max/Min: 15 / 21
• Sound pressure level dB(A)@3m: 22 / 34
• Specific Fan Power (SFP) (W/l/s): 0.45 / 0.37
• Operation Speeds: 2
• UK Guarantee: 2 Years
• IPX Rating: 4
• Timer: Yes

Downloads

Download Xpelair Simply Silent Family Brochure

Specification

Airflow	76 m3/h
Applicable Area	Home
Backdraft Shutter	No
Collection Name	DX100
Domestic or Commercial	Domestic
Duct Size Diameter	98 mm
Extraction Rate Litres Second	21 L/s
Extractor Type	Axial
Fan Size Diameter	4 in
Finish Or Colour	White
IP Rating	IPX4
Lip Depth	36 mm
Mounting	Ceiling
MPN	93018AW
Number Of Speeds	2
Timer	Yes
Height	179 mm
Weight	0.08 kg
Width	179 mm
