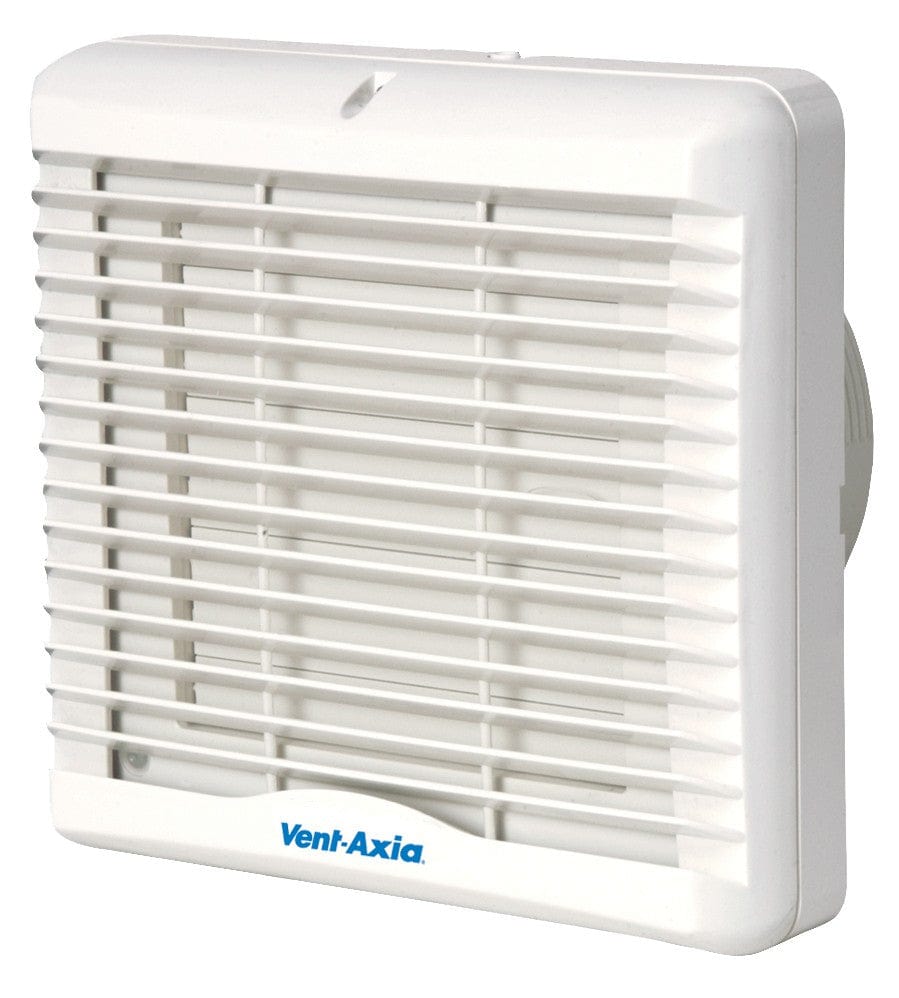

Vent-Axia VA140/150VS Axial Kitchen Fan - 458915 - Return Unit

Product Overview

VA140/150 Panel models are designed to alleviate the everyday problems that condensation and household odours may cause. Effectively extracts odours and moisture laden air from kitchens giving a healthy and fresh environment.

Specifically sized to meet the Building Regulation requirements for powered extract ventilation in domestic kitchens. All VA140/150 models have a Trickle Ventilation Control facility fitted as standard. The VA140/150 range is fitted with internal and external louvres conforming to the latest international safety standards.

Variable speed kitchen extract with a built in adjustable speed controller, which can reduce the speed to 40% of its maximum performance.

Technical Specifations

• Noise Level: 36 (dB(A))
• Wattage: 34 W
• Voltage: 220-240V/1/50Hz
• IP Rating: IPX4
• Manufacturer Code: 458915
• Barcode: 5015135488475
• Where to Mount: Wall
• Hole Size: 152 mm
• Type of Extractor: Axial
• Number of Speeds: 2 Speed
• Extractor Application: Kitchen
• Extraction Rate: 173 m3/h
• Dimensions: Height: 216mm x Width: 224mm x Depth: 140mm
• Weight: 1.75 Kg

Downloads

Download 140120/140220/140320/140420 Instruction Manual

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Extractor Type	Axial
Fan Size Diameter	6 in
Finish Or Colour	White
IP Rating	IPX4
Minimum Voltage	220 V
Mounting	Ceiling, Panel, Wall, Window
MPN	458915
Number Of Speeds	2
power consumption	18.8 W
Voltage	240 V
Height	216 mm
Width	224 mm
