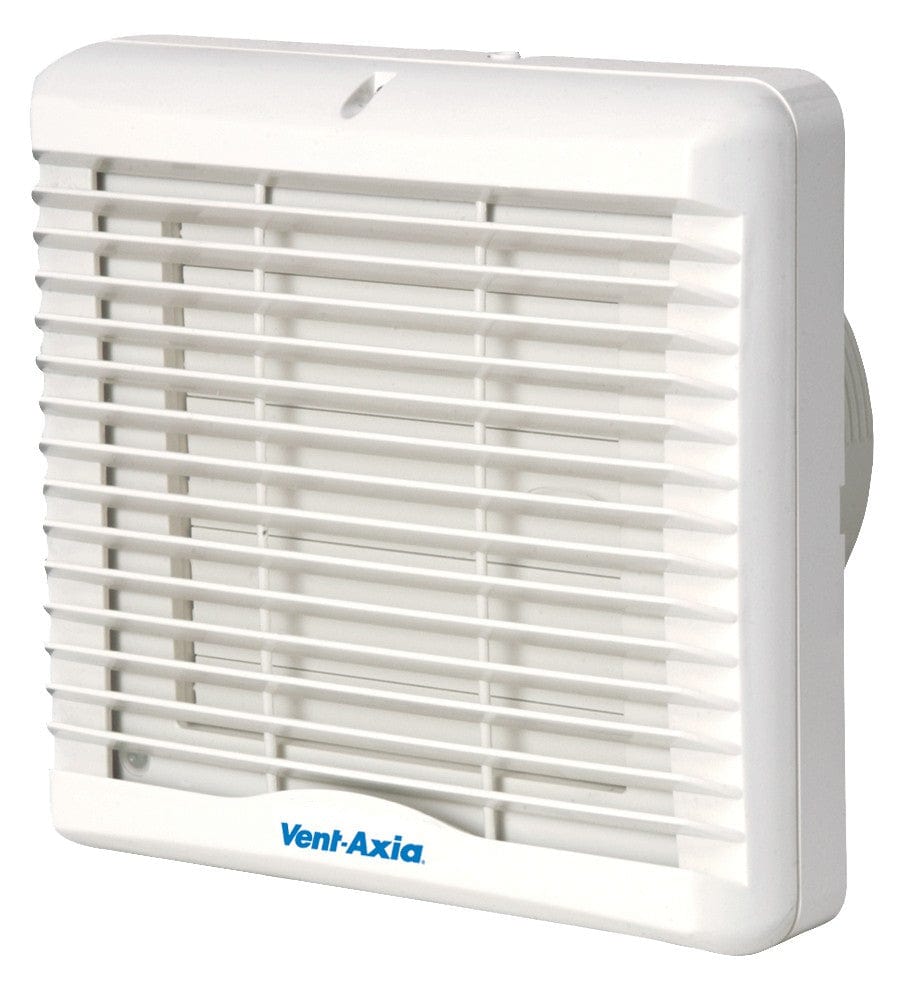

Vent-Axia VA140/150KHT Axial Kitchen Fan - 140420 - Return Unit

Product Overview

The VA14/150KHP is a 150mm Spigot Single Speed Kitchen Extract Fan With a Adjustable Humidity (Between 62-82%RH) and a  Overun timer between 3 to 30 Minutes. With features like a thermo electric shutter to prevent back draughts, and IP44 rating so that it can be installed in Zone 2 safely. Suitable for wall, ceiling, panel and window mounting and compliant to Building Regulations approved document F.

Humidistat controlled kitchen extract fan with adjustable overrun timer (3-25 mins) Humidity adjustment 62-82% RH.

Technical Specifications

• Power Consumption: 18.8 Watts
• Sound: 36 dB(A) at 3 Metres
• Wall Fixing Hole: 152mm Diameter
• Window Fixing Hole: 160mm Diameter
•  IP Rating: IP44
• Warranty: 2 Years
• Dimensions: Height: 216mm x Width 224mm x Depth: 60mm
• 150mm (6") Spigot
• Humidity Sensor adjustable between 62-82% and Pullcord Overide
• Extract Performance - 245 m3/hour or 68 Litres Per Second

Downloads

Download 140120/140220/140320/140420 Instruction Manual

Specification

Applicable Area	Bathroom, Kitchen, Laundry Room, Toilet
Duct Size Diameter	155 mm
Extractor Type	Axial
Fan Size Diameter	6 in
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX4
Mounting	Ceiling, Panel, Wall, Window
MPN	140420
Number Of Speeds	1
power consumption	18.8 W
Timer	Yes
Voltage	240 V
Depth	232 mm
Height	152 mm
Width	232 mm
