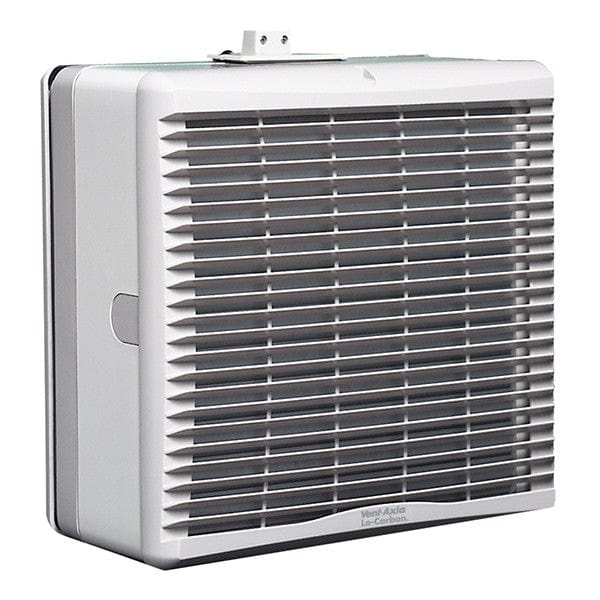

VENT-AXIA TX7WL WALL FAN 220-240V - W162510 - Return Unit

Product Overview

The Vent-Axia TX7WL Wall Fan 220-240V is the UK’s No. 1 commercial fan. Behind the grille of the T-Series wall model is a range of high performance extract/intake ventilating units designed to fit through most wall thicknesses using telescopic liners supplied. For walls of exceptional thickness additional liners can be used.

T-Series also features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. Conduit entry is provided for concealed wiring.

T-Series controllers may be used with this model to obtain a choice of speeds, reversible airflow direction and automatic sensor operation. When used with a T-Series TSC controller, the speed control pack is removed from the T-Series ventilating unit and fitted into the 3-pin socket in the back of the controller. The Vent-Axia Ecotronic controller gives even greater running economy with its minimum speed setting and 'E' mode. When using the Ecotronic controller the speed control pack remains in the fan.

•  Patented electronic shutter system ensures quiet, trouble free operation
• For the very best from your fan use the Ecotronic controller
• Easy fit connector Top Socket, standard on all models

•  Patented electronic shutter system ensures quiet, trouble free operation
• For the very best from your fan use the Ecotronic controller
• Easy fit connector Top Socket, standard on all models

• Warranty: 1 Year
• Power Consumption: 40
• Dimensions (W x D x H): 352x25x345mm
• Noise Level: 39 dBA
• Features:
  •  Patented electronic shutter system ensures quiet, trouble free operation
  • For the very best from your fan use the Ecotronic controller
  • Easy fit connector Top Socket, standard on all models
• Voltage: 220-240
• Colour: White
• Timer: Yes
• Mounting: Wall
• Shutter: Yes

Specification
