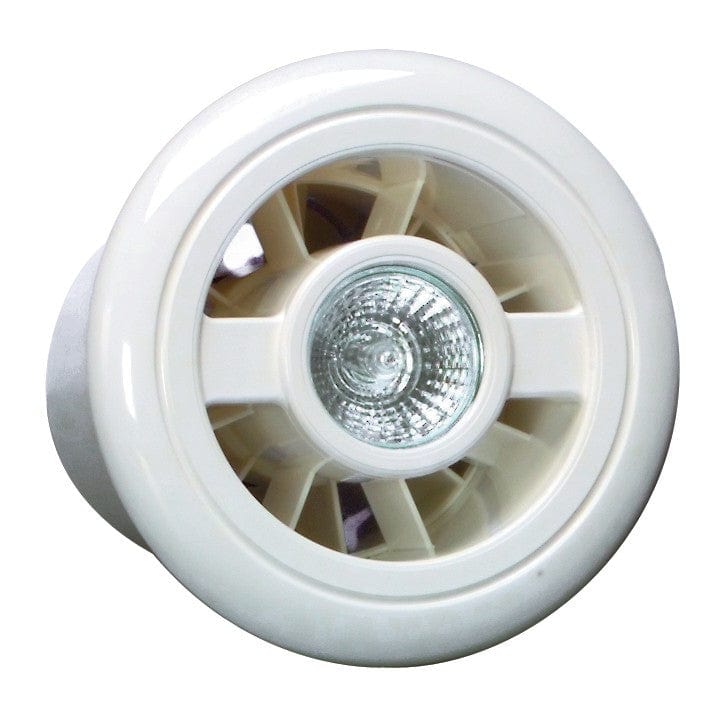

Vent-Axia Luminair T White Assembly 12V Selv - 188210 - Return Unit

Product Overview

The Vent-Axia Luminare Timer Switches the fan On with the light. When the light is switched Off, the fan continues to run for an adjustable set period to meet the building regulations for internal bathrooms.

The Vent-Axia Luminare is a safety exra low voltage fan and light in a single ceiling mounted fitting. The IPX7 unit is installed directly over a shower in complete safety.

The fan extracts moisture and humidity at source, preventing damaging condensation from spreading. At the same time, it bathes the shower enclosure in a rich soft light.

It is Ideal for all types of bathroom and shower applications and is particularly suitable for bedsit and en-suite shower installations.

Designed for mounting in a wide variety of ceiling thicknesses. The safety isolating transformer to BS EN 60742 is mounted in a purpose made enclosure that can be wall mounted or sited in the loft, and is designed to accept mini trunking (LuminAir L transformer - IP20 - loft mounted).

The LuminAir Light has a 20 Watt 40° spread, pre-formed Dichroic Multi-Mirror™ lamp, to give a pool of soft warm light. The lamp has a long life and is simple to change.

Downloads

Download 188210 Product Manual

Specification

Applicable Area	Bathroom, Shower, Toilet
Collection Name	Luminair T
Extractor Type	Fan Light Kit
Fan Size Diameter	4 in
Finish Or Colour	White
IP Rating	IPX7
Minimum Voltage	220 V
Mounting	Ceiling
MPN	188210
Noise Level Maximum	35 dB
Number Of Speeds	4
power consumption	22 W
Timer	Yes
Voltage	240 V
Diameter	103 mm
Height	180 mm
Width	150 mm
