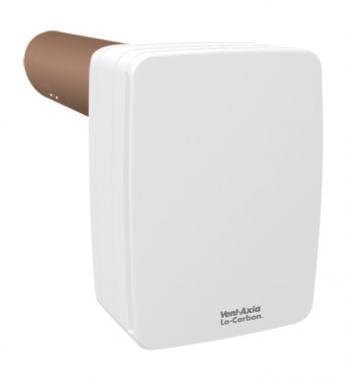

Vent-Axia Lo-Carbon Tempra SELV P Heat Recovery Fan - 444368 - Return Unit

Product Overview

The Vent-Axia Lo-Carbon Tempra SELV P Single Room Heat Recovery Unit is available with Safety Extra Low Voltage, a constant trickle speed and with a pullcord or switch to boost airflow. The units are suitable for installation into external walls up to 318mm thick and all installations can be carried out from inside a building. To facilitate ease of maintenance and installation the Tempra's simple construction is not difficult to fit in the same location as an existing 100mm diameter fan and offers easy access to the heat exchanger for regular maintenance. Under the Building Regulations Document F, continuous running products such as the Lo Carbon Tempra are only required to move an amount of air as laid down in table 5.1a of Document F.

Downloads

Download 444368 Product Manual

Specification

Applicable Area	Bathroom, Toilet
Collection Name	Lo-Carbon Tempra
Duct Size Diameter	105 mm
Extractor Type	Heat Recovery
Fan Size Diameter	4 in
Finish Or Colour	White
IP Rating	IPX7
Mounting	Wall
MPN	444368
Noise Level Maximum	22 dB
Number Of Speeds	3
power consumption	5.7 W
Pull Cord	Yes
Voltage	240 V
Depth	117 mm
Height	266 mm
Width	190 mm
