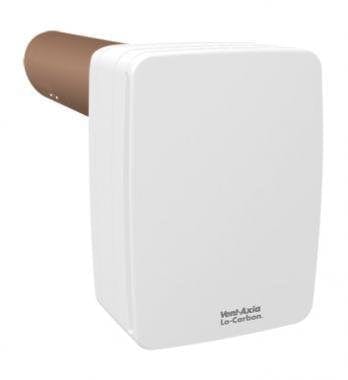

Vent-Axia Lo-Carbon Tempra SELV LHTP Heat Recovery Fan - 403837 - Return Unit

Product Overview

The Tempra units are designed for use in bathrooms, toilets and utility areas. The Vent-Axia Lo-Carbon Tempra SELV LHTP Single Room Heat Recovery Unit offers Safety Extra Low Voltage, a constant trickle speed with pull cord or switch live to boost airflow with an adjustable 5-50 minute overrun timer and optional 3 minute delay on timer or internal humidistat adjustable between 60 to 90 percent room humidity. The units are suitable for installation into external walls between 318 - 460mm thick and all installations can be carried out from inside a building. To facilitate ease of maintenance and installation the Tempra's simple construction is not difficult to fit in the same location as an existing 100mm diameter fan and offers easy access to the heat exchanger for regular maintenance. Under the Building Regulations Document F, continuous running products such as the Lo Carbon Tempra are only required to move an amount of air as laid down in table 5.1a of Document F.

Downloads

Download 403837 Product Manual

Specification

Applicable Area	Bathroom, Toilet
Collection Name	Lo-Carbon Tempra
Duct Size Diameter	105 mm
Extractor Type	Heat Recovery
Fan Size Diameter	4 in
Finish Or Colour	White
Humidistat	Yes
IP Rating	IPX7
Mounting	Wall
MPN	403837
Noise Level Maximum	22 dB
Number Of Speeds	3
power consumption	5.7 W
Pull Cord	Yes
Timer	Yes
Voltage	240 V
Depth	117 mm
Height	266 mm
Width	190 mm
