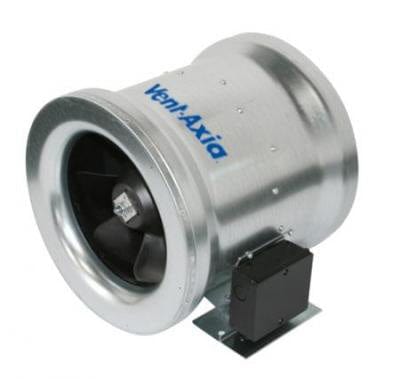

Vent-Axia ACM315 Inline Mixed Flow Fan - 17112010 - Return Unit
Quick Find Code: 17112010/RETB
2 Year Warranty
Free Delivery!*
- Designed to meet IP54 standards
- Rotating motor chassis assembly
- Three speed selectable motor
- Aesthetically pleasing with wipe clean polymer
- Detachable duct spigots
Vent-Axia ACM315 Inline Mixed Flow Fan - 17112010 - Return Unit
Quick Find Code: 17112010/RETB
2 Year Warranty
Free Delivery!*
- Designed to meet IP54 standards
- Rotating motor chassis assembly
- Three speed selectable motor
- Aesthetically pleasing with wipe clean polymer
- Detachable duct spigots
Regular price
£499.95
£399.95
(inc. VAT)
Regular price
£416.63
£333.29
(ex. VAT)
You save: £100.00
Show ex. VATShow inc. VAT
Product Overview
Vent-Axia has designed a complete range of Mixed Flow In-Line fans that are now quieter than any other product on the market. The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution. The product is mounted using two straps that secure the motor chassis assembly to the footplate. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.
All motors are fitted with Standard Thermal Overload Protection. (S.T.O.P.). There is an adjustable minimum speed setting. The controller is radio suppressed to BS EN 55014 and electrical connections for use with suitable external sensors are provided. 86 x 156 x 53mm (H x W x D).
Downloads
Specification
| Applicable Area | Bathroom, Commercial, Laundry Room, Office, Toilet, Warehouse |
|---|---|
| Collection Name | ACM |
| Duct Size Diameter | 315 mm |
| Extractor Type | Inline |
| Fan Size Diameter | 12 in |
| Finish Or Colour | White |
| IP Rating | IP54 |
| Mounting | Ceiling |
| MPN | 17112010 |
| Noise Level Maximum | 34 dB |
| Number Of Speeds | 3 |
| power consumption | 300 W |
| Voltage | 240 V |
| Depth | 475 mm |
| Height | 440 mm |
| Width | 475 mm |
