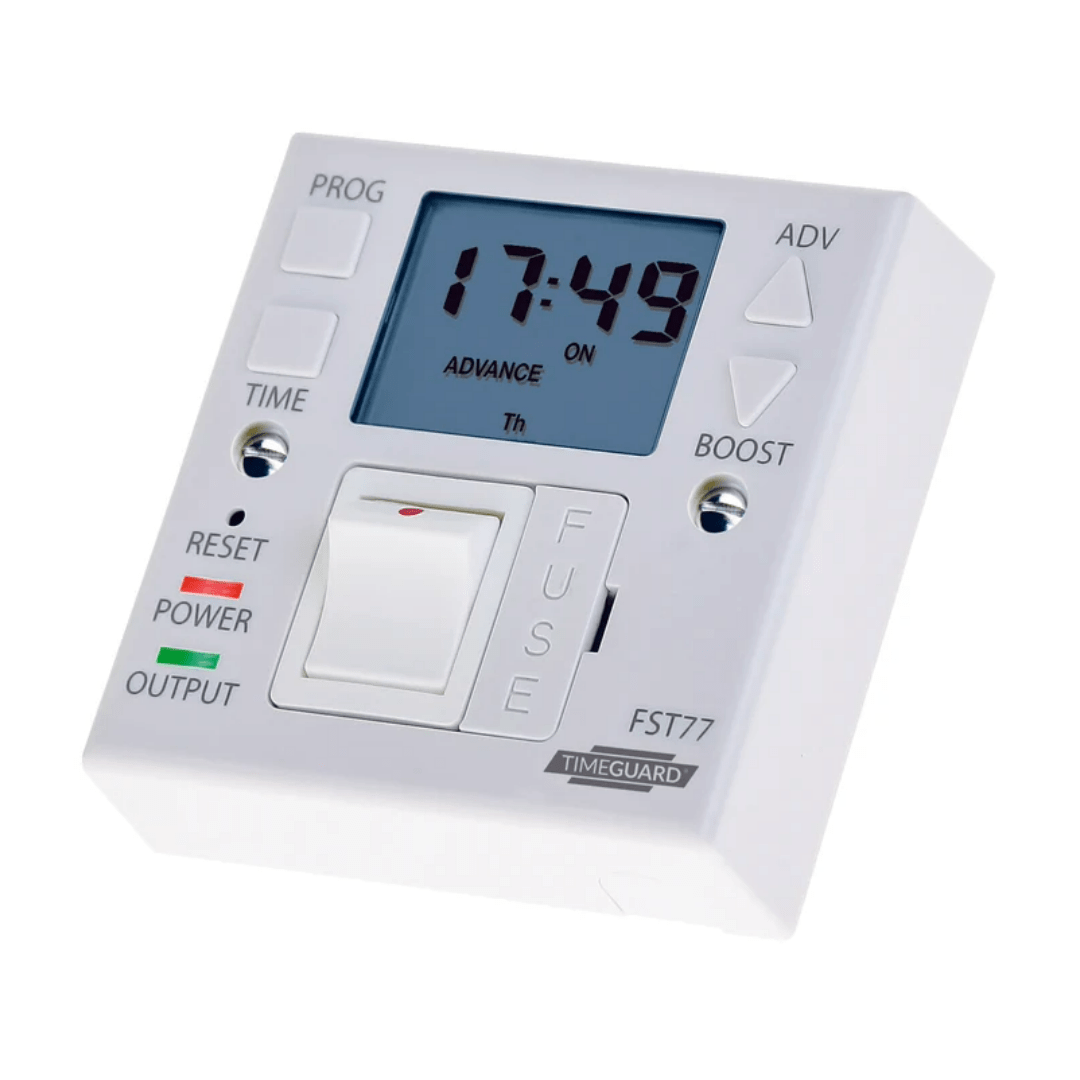

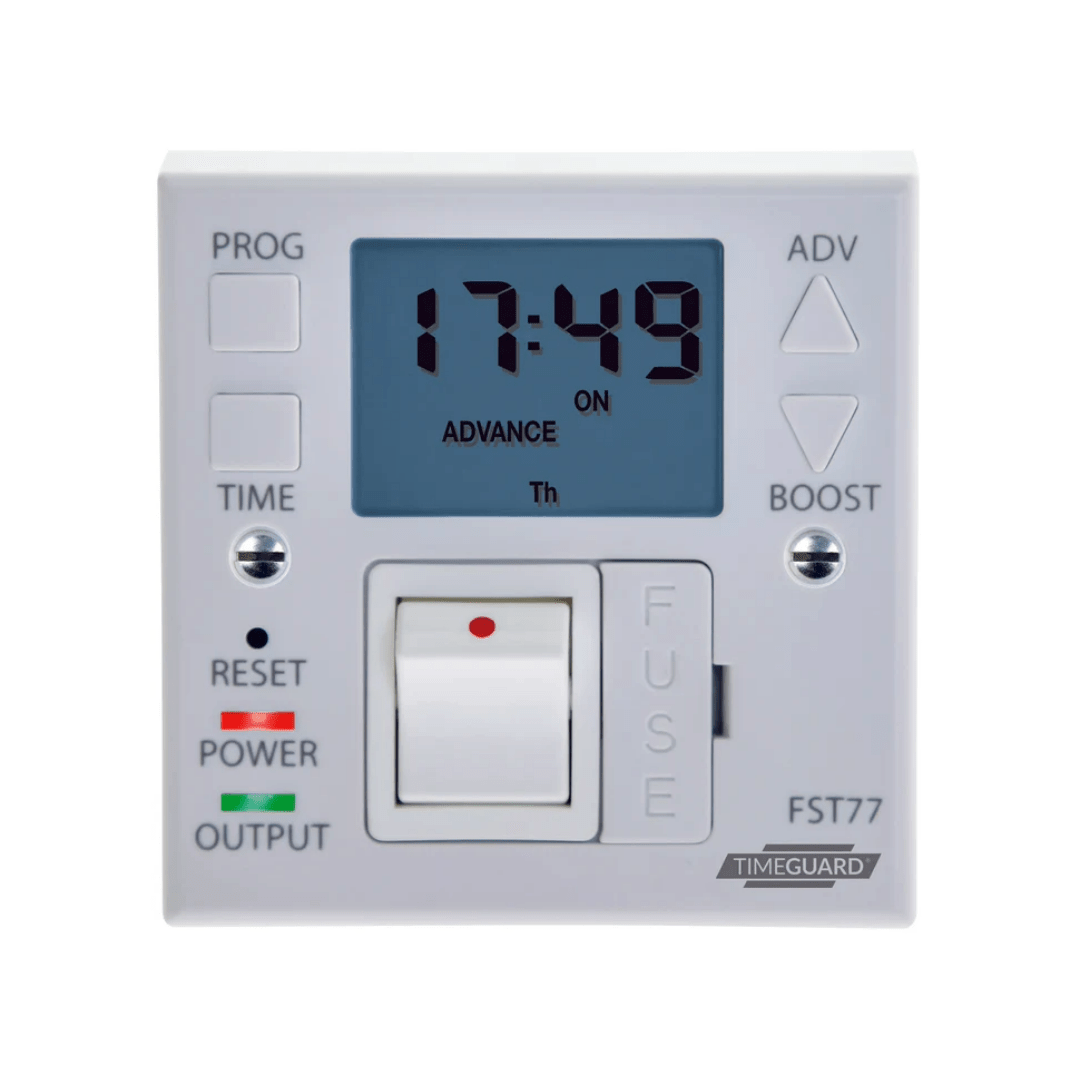

Timeguard 7 Day Fused Spur Timeswitch - FST77N

Product Overview

Timeguard 7 Day Fused Spur Timeswitch - FST77N The Timeguard FST77N is a Fused Spur Timerswitch designed for easy retrofitting in areas with existing single gang connection units. It allows users to control when and how often their appliances operate. Key features include boost periods of up to 120 minutes (2 hours), permanent ON/OFF override, self-cancelling override until the next program change, mains and output colour-coded indicators, 8 programmable ON/OFF slots per day, and a 28-day battery backup to maintain programming during power cuts or extended maintenance. This timer switch delivers the reliable features you expect from the SupplyMaster range. Key Features: 7-Day Programmable Timer: Allows up to 8 ON/OFF programs per day, providing up to 56 ON/OFF programs per week. Boost Facility: Offers optional boost periods of 30, 60, 90, or 120 minutes. Automatic Summer/Winter Time Changeover: Adjusts the time automatically for daylight saving changes. LED Indicators: Red LED for mains ON and green LED for output status. Permanent ON/OFF Override: Provides flexibility in controlling your appliances. Self-Cancelling Override: Cancels the override automatically at the next program change. Battery Backup: Integral memory backup battery retains programs during power failures for up to 28 days. Double Pole Isolation Switch: Enhances safety by providing complete electrical isolation when necessary. Replaceable BS1362 13A Fuse: Adds an extra layer of reliability. Load Capacity: Suitable for use with up to 3kW immersion heaters, 750W incandescent/halogen lighting, 200W LED lighting, and 100W compact fluorescent lighting. IP20 Rated Protection: Ensures durability and protection against dust and small objects. Digital Display: Large, easy-to-read 24-hour clock/timer display. Operating Voltage: 230V 50Hz.

Specification

Applicable Area	Home
Battery Backup	Yes
Battery Rechargeable	Yes
Domestic or Commercial	Domestic
Estimated Battery Life	720h
Finish Or Colour	White
Fused	Yes
Gang	1
MPN	FST77N
Operating Temperature Maximum	40°C
Operating Temperature Minimum	-20°C
Voltage	230V
Depth	38mm
Height	85mm
Width	85mm
