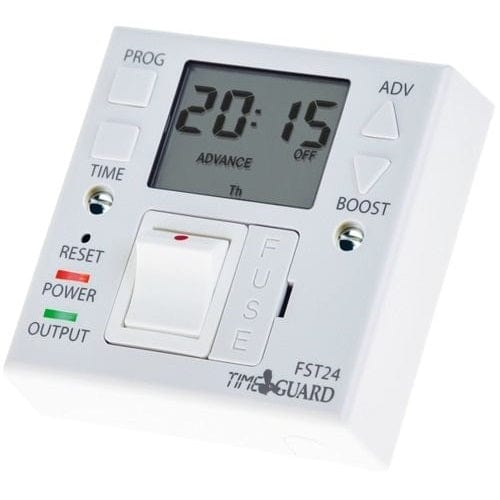

Timeguard 24 Hour Fused Spur Timeswitch - FST24 - Return Unit

Product Overview

Timeguard’s new look Fused Spur Timeswitches with easy viewing display, optional 1 or 2 hour boost facility and automatic Summer/Winter time changeover. Clearly delivering the tried and trusted features you expect from the SupplyMaster range.

Features:

• Up to 4 ON and OFF programmes available daily
• Suitable for use with up to 3kW immersion heaters
• Switches the following lighting loads: 750W incandescent or halogen lighting, 500W fluorescent lighting, 100W compact fluorescent lighting (cfl’s) and 200W LED lighting Not suitable for discharge lighting
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing
• Permanent OFF and timed outputs available
• Easy view 24 hour digital clock/timer display
• Optional 1 or 2 hour boost facility
• Automatic summer/winter time changeover
• Self-cancelling override
• Shortest switching time 1 minute
• Programme advance and review options
• BS1362 fuse replaceable from front
• Double pole switch for ease of control
• Integral memory back up battery retains programmes in event of power failure
• Ideal for replacing single gang connection unit or fixed appliance outlets
• Fits a single gang wall box min 25mm deep

Specifications:

• Timer Mode: 24 Hour
• Setting Type: Digital
• Switch Rating 230V AC: 13A Resistive (3kW)
• Operating Temperature: 0 to 40ºC
• Battery Back Up: 4 Weeks Rechargeable
• EC Directives: Conforms to Latest Directives
• Dimensions: Width: 85mm x Height: 85mm x Depth: 38mm

• Warranty: 5 Years
• Voltage: 230V AC
• Width: 85
• Height: 85
• Manufacturer Code: FST24
• Barcode: 5012483012604
