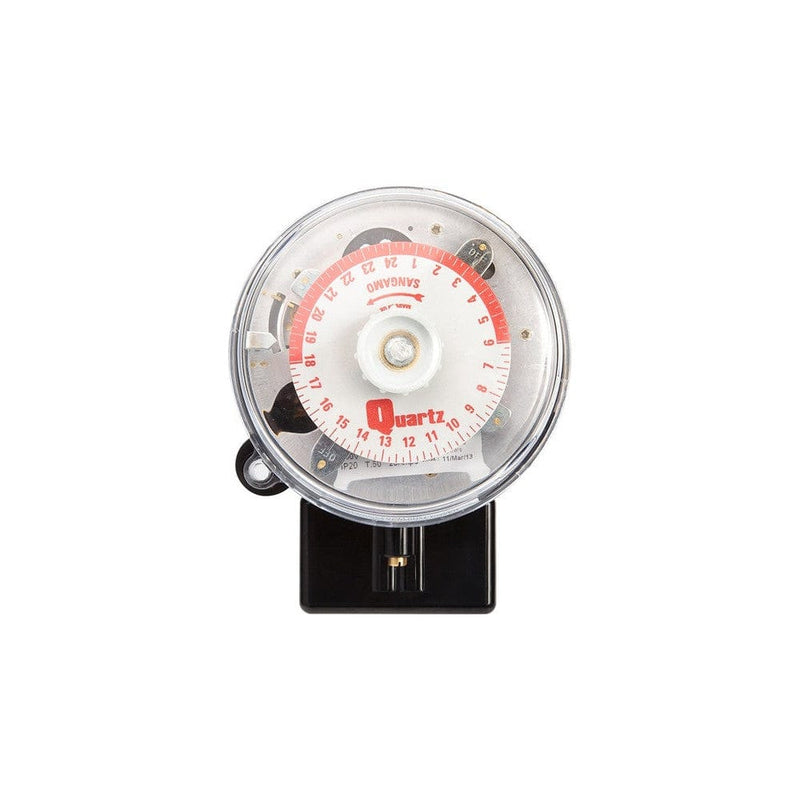

Sangamo 20A 4 Pin 24 Hour Round Time Switch - Q555.2

Product Overview

Sangamo are a UK manufacturer of time clocks/heating controls, thermostats, immersion controllers & programmers. The brand is also recognised for their Round Pattern Time Switches.

Q555.2 - 20A 4 Pin 24 Hour Round Time Switch

The Q555 time switches are robust, 20amp switches that are ideal for the switching of heating and lighting applications- up to three times a day.

The Q555 has a 4-pin base which means it has independent motor switching connections which enable a different switching circuit voltage from the voltage powering the time switch. The Q555 has a 100 hour battery reserve which is useful should there be a power failure. The day omit feature means you can skip any day of the week if necessary. There is also a manual override button for your convenience.

• Programming: 24 hour
• Current Rating: 20A
• Connection Pins: 4
• Battery Reserve: 100 hours
• Day Omit Dial: Yes (Omits the ‘ON’ operation)
• Fixing: Surface Mounting
• Ingress Protection: IP20
• Operating Temperature: 0°C to 50°C
• Dimensions: 146.5mm x 105.7mm x 82mm
• Display: 24 Hourr Dial
• Timing Accuracy: 5 Minutes/Year
• Contact Type: SPST

Specification

Depth	82 mm
Height	136 mm
Weight	0 KG
Width	105.7 mm
