Megaman Lyra 9W/14W/18W LED Bulkhead, CCT - 712501

Product Overview

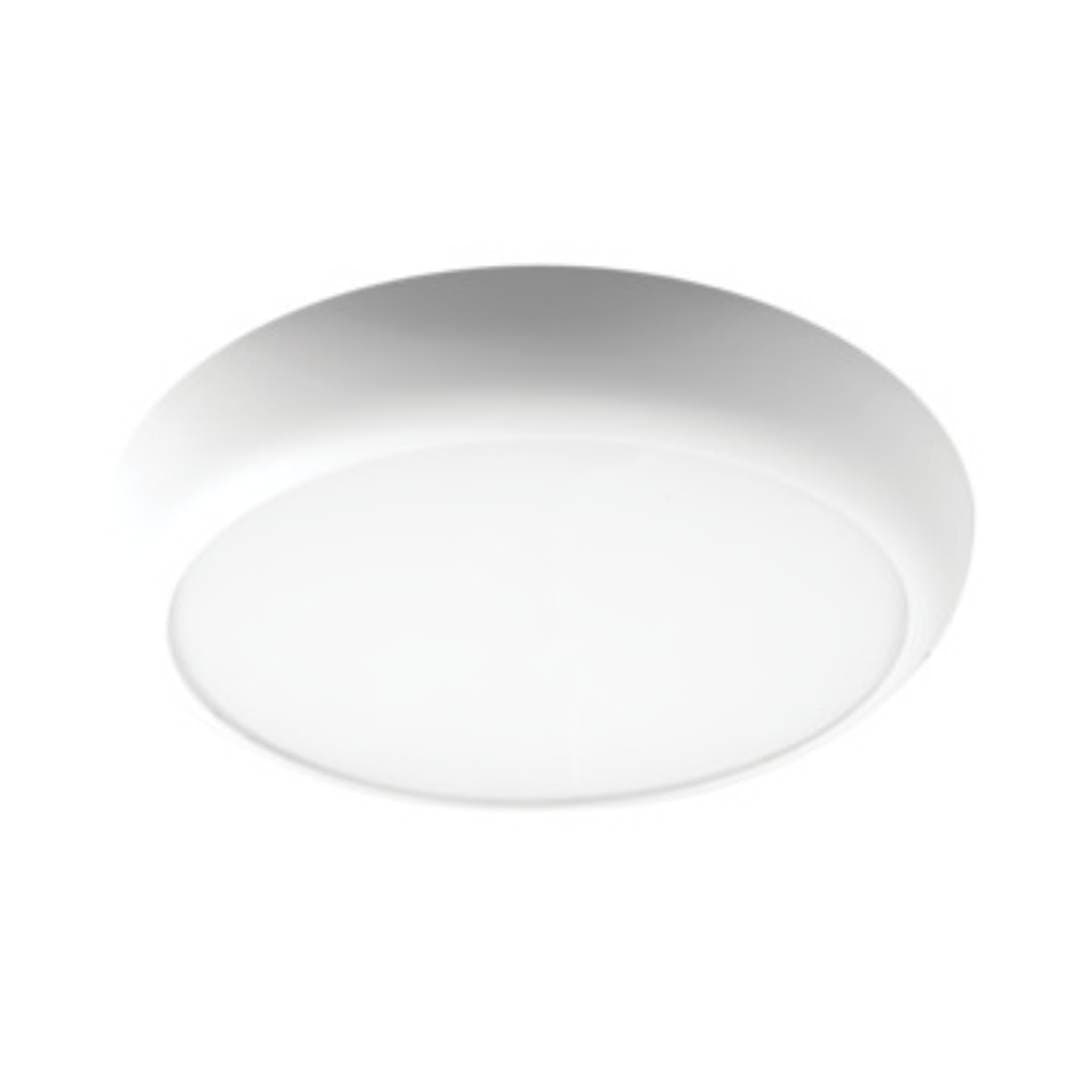

The Megaman Lyra LED Bulkhead is a durable and versatile lighting solution designed for both indoor and outdoor environments. With selectable wattage options of 9W, 14W, and 18W, it offers adjustable brightness to suit a variety of applications, from residential corridors to commercial stairwells and outdoor walkways. Its robust construction and sleek design make it a practical and stylish choice for modern lighting needs.

This bulkhead features tri-colour temperature control, allowing users to switch between warm white, cool white, and daylight settings. The full arc surface design ensures even light distribution, while the replaceable light source supports long-term sustainability. With an IP66 and IK10 rating, the Lyra is built to withstand harsh conditions, including dust, water, and impact, making it ideal for high-traffic or exposed areas.

Installation is made simple with a detachable push-in terminal and BESA box compatibility. The modular design also supports optional plug-and-play microwave sensors and emergency modules, enhancing its functionality for safety-critical environments. Its slim profile and white finish ensure it blends seamlessly into any setting.

Downloads

Download 712501-spec-sheet

Specification

Beam Angle	110 °
Colour Temperature	6000 K
Colour Temperature Minimum	3000 K
CRI	80
Dimmable	No
Dimming Wattage Maximum	18 W
Dimming Wattage Minimum	9 W
Finish Or Colour	White
IK Rating	IK10
IP Rating	IP66
Life Expectancy	50000 h
Luckins Code	437497228
Lumens	1800
Minimum Voltage	220 V
Voltage	240 V
Diameter	300 mm
Height	70 mm
