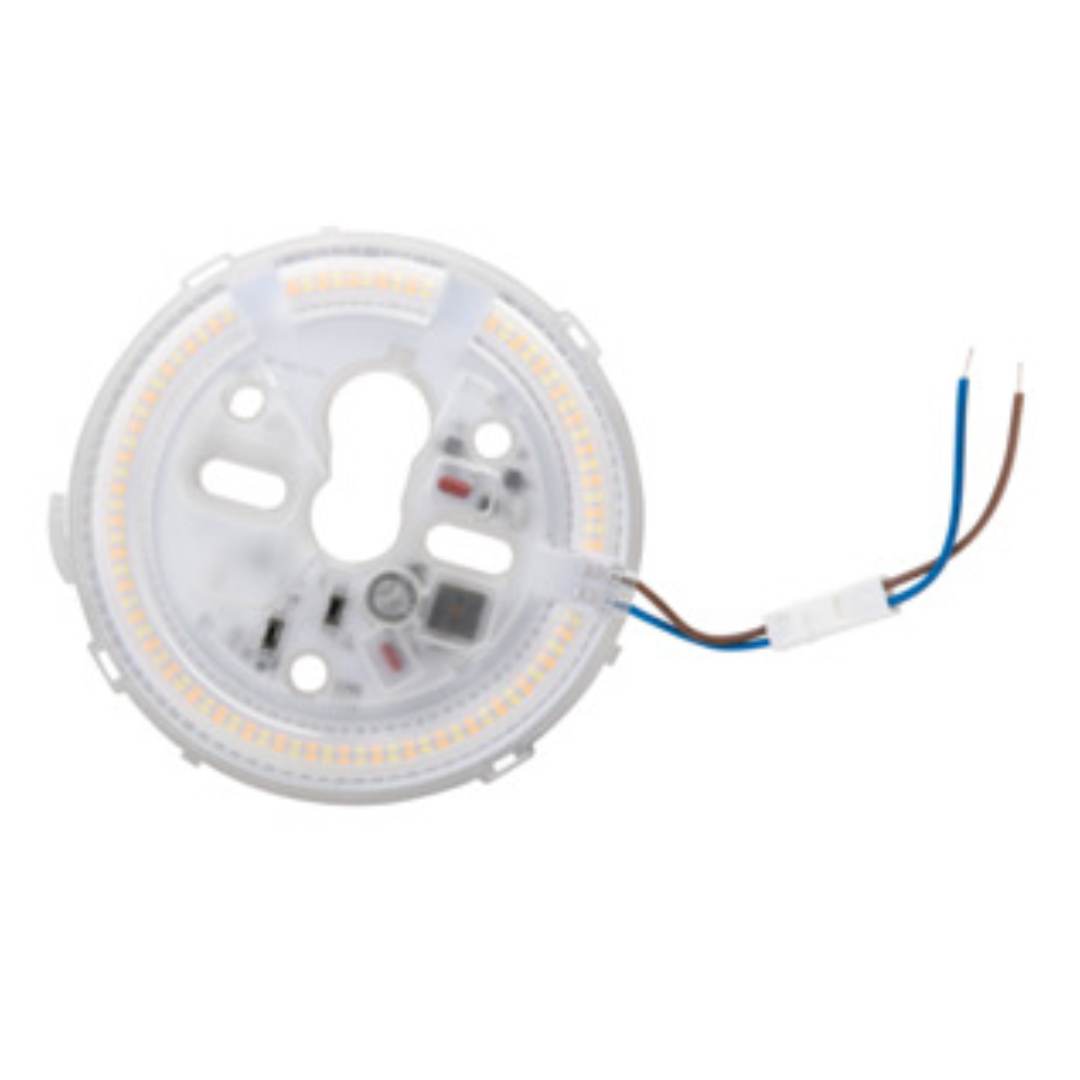

Megaman Exchange Light Source Replacement for 712352, 712353 & 712282, CCT - 712355

Product Overview

The Megaman Exchange Light Source Replacement is a high-efficiency LED module designed to work seamlessly with the Renzo and Fonda Exchange bulkhead ranges. With selectable wattage options of 10W, 15W, and 20W, it offers adaptable brightness levels to suit a variety of lighting needs in both commercial and residential settings. Its compact design and integrated driver make it a practical upgrade for existing installations.

This module features tri-colour temperature control, allowing users to switch between warm white, cool white, and daylight tones. It delivers consistent, flicker-free illumination with a high luminous efficacy of 120 lumens per watt. The white finish and slim profile ensure it integrates neatly into compatible fittings, maintaining a clean and modern appearance.

Built for long-term performance, the light source supports loop-through wiring and is compatible with motion sensors and emergency modules. Its robust construction and ease of installation make it a reliable and energy-saving solution for upgrading lighting systems without the need to replace the entire fitting.

Downloads

Download 712355-spec-sheet

Specification

Colour Temperature	6500 K
Colour Temperature Minimum	3000 K
CRI	80
Dimmable	No
Finish Or Colour	White
Life Expectancy	50000 h
Lumens	2400
Minimum Voltage	220 V
Minimum Wattage	10 W
Voltage	240 V
Wattage	20 W
Diameter	157 mm
Height	29 mm
