Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan - Return Unit

Quick Find Code: MF150S/RETA

3 Year Warranty
Free Delivery!*
  • Built-in electronic timer adjustable up to 20 minutes
  • Compact Overall Dimensions - Easy to Install
  • Double Insulation – No Earth Required for Installation
  • High Quality Ball Bearing & Long Life Motors
  • Warranted for A Minimum of 30,000 Hours or 3 Years

Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan - Return Unit

Quick Find Code: MF150S/RETA

3 Year Warranty
Free Delivery!*
  • Built-in electronic timer adjustable up to 20 minutes
  • Compact Overall Dimensions - Easy to Install
  • Double Insulation – No Earth Required for Installation
  • High Quality Ball Bearing & Long Life Motors
  • Warranted for A Minimum of 30,000 Hours or 3 Years

£98.95
£68.68 (inc. VAT)

Show ex. VAT

Manrose

Notify Me When Available

Alternative In-Stock Product
Knightsbridge 100mm/4 inch LED Backlit Extractor Fan with Humidistat and Overrun Timer - Black and Stainless Steel - EX004H

Knightsbridge 100mm/4 inch LED Backlit Extractor Fan with Humidistat and Overrun Timer - Black and Stainless Steel - EX004H

In Stock

£49.95

View

Used Grades Explained

Product Overview

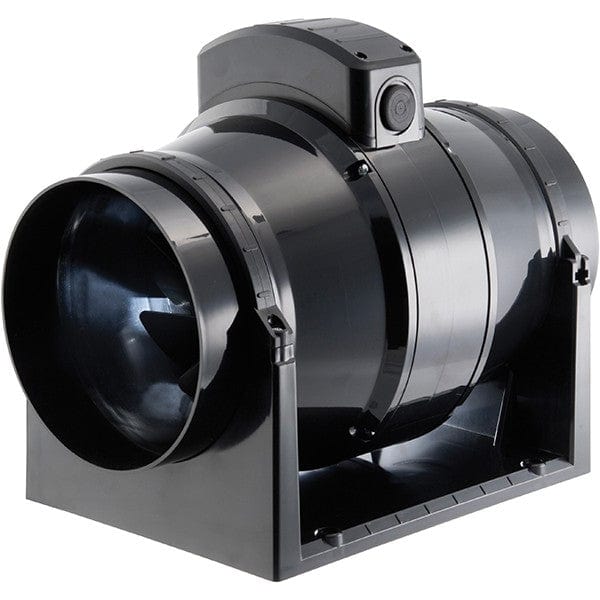

Manrose MF150S 150mm In-Line Mixed Flow Extractor Fan


This Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.


It features high-quality ball bearings, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.


Specifications

  • RPM High: 2400
  • RPM Low: 1700
  • Wattage High: 48
  • Wattage Low: 42
  • Maximum Airflow (m3/hr) High: 520
  • Maximum Airflow (m3/hr) Low: 400
  • Maximum Airflow (l/s) High: 138
  • Maximum Airflow (l/s) Low: 111
  • Maximum Pressure (Pa) High: 360
  • Maximum Pressure (Pa) Low: 320
  • dB(A) 3m* High: 35
  • dB(A) 3m* Low: 31
  • Max Operating Temp ºC: 40
  • Hole Size: 6"

Downloads

Download MF150S Product Datasheet

Specification

Airflow520 m3/h
Applicable AreaBathroom, Commercial, Kitchen, Laundry Room, Office, Toilet, Warehouse
Collection NameMix-Flo
Extraction Rate Litres Second111 L/s
Extractor TypeInline
Fan Size Diameter6 in
Finish Or ColourBlack
Installation KitYes
IP RatingIP44
Minimum Voltage220 V
MountingCeiling
MPNMF150S
Number Of Speeds3
power consumption42 W
TimerNo
Voltage240 V
Height252 mm
Length307 mm
Weight0.01 kg
Width192 mm
