Manrose MF100S 100mm In-Line Mixed Flow Extractor Fan - Return Unit

Product Overview

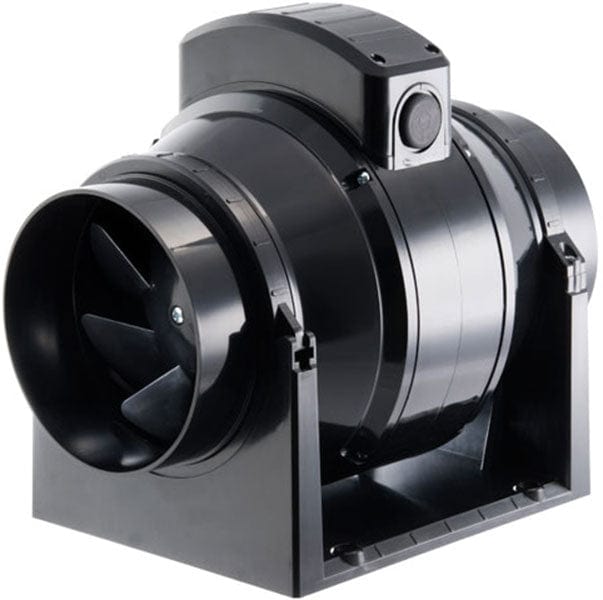

Manrose MF100S 100mm In-Line Mixed Flow Extractor Fan

These Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting.

It features high quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.

Specifications

• RPM High: 2400
• RPM Low: 1700
• Wattage High: 25W
• Wattage Low: 20W
• Maximum Airflow (m³/hr) High: 245
• Maximum Airflow (m³/hr) Low: 180
• Maximum Airflow (l/s) High: 68
• Maximum Airflow (l/s) Low: 50
• Maximum Pressure (Pa) High:  200
• Maximum Pressure (Pa) Low: 120
• dB(A) 3m* High: 24
• dB(A) 3m* Low: 20
• Max Operating Temp°C: 40
• Hole Size: 4"
• High air flows are achieved through flexible duct
• Compact overall dimensions
• 2 speed fan settings
• Double Insulation - no earth required
• Fully Building Code compliant
• Fully BEAB approved rated to IPX4
• Dimensions: Height: 230mm x Width: 298mm x Depth: 175mm
