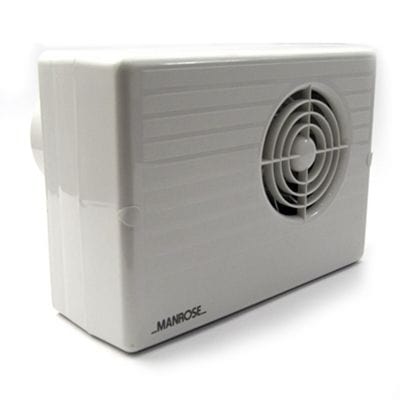

Manrose CF200T 100mm 4inch. Centrifugal Extractor Fan with Timer - Return Unit

Product Overview

The CF200 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF200 ranges are designed for bathrooms, toilets, cloakrooms, utility rooms.

Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.

All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.

There are seven models in each series. The CF200 has an extract rate of 110m3/hr 31 litres per second.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power to the CF200 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

Designed to comply with the Building Regulations on Ventilation (F1).

Features:

• Timer model incorporating integral adjustable electronic timer (1-20 mins)
• 100mm / 4" standard rigid or flexible duct
• These fans are double insulated and do not require an earth
• All wiring must comply with current IEE regulations
• A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3amp fuse fitted
• The fan should not be accessible to a person using either the shower or bath and mounted to a minimum of 1.8 metres from the floor

Sapecifications:

• Maximum pressure: 120 p.a.
• Fan speed: 1400 r.p.m.
• 110m3/hr, 31 litres per second
• Diamensions: Height: 185mm x Width: 260mm x Depth: 90mm

• Noise Level: 45.0 dB(A)
• Wattage: 17
• Voltage: 220-240V - AC. 50Hz
• Width: 260
• Height: 185
• Manufacturer Code: CF200T
• Barcode: 5020953551287
