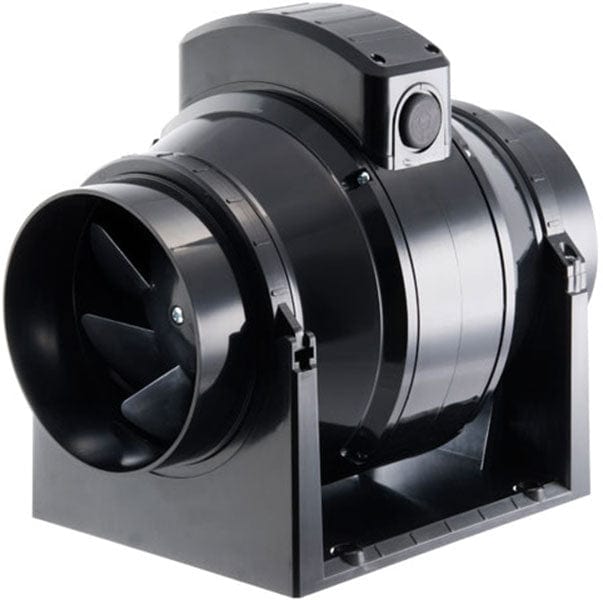

Manrose 200mm In-Line Mixed Flow Extractor Fan - MF200S - Return Unit

Product Overview

These Manrose in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise. Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting. It features high quality ball bearing, long life motors, continuously rated and warranted for a minimum of 30,000 hours or 3 years. Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction.

• RPM High: 2700
• RPM Medium: 2750
• RPM Low: 2000
• Wattage High: 120
• Wattage Medium: 113
• Wattage Low: 110
• Maximum Airflow (m³/hr) High: 855
• Maximum Airflow (m³/hr) Medium: 738
• Maximum Airflow (m³/hr) Low: 648
• Maximum Airflow (l/s) High: 238
• Maximum Airflow (l/s) Medium: 205
• Maximum Airflow (l/s) Low: 180
• Maximum Pressure (Pa) High: 313
• Maximum Pressure (Pa) Medium: 280
• Maximum Pressure (Pa) Low: 260
• dB(A) 3m* High: 48
• dB(A) 3m* Medium: 48
• dB(A) 3m* Low: 48
• Max Operating Temp ºC: 40
• Hole Size: 8"
• High air flows are achieved through flexible duct
• Compact overall dimensions
• 3 speed fan settings
• Double Insulation - no earth required
• Fully Building Code compliant
• Fully BEAB approved rated to IPX4
• Dimensions: Height: 275mm x Width: 300mm x Depth: 250mm

• Width: 300
• Height: 275
• Manufacturer Code: MF200S
