KFR-23IW/AG 9000BTU Wall Split Air Conditioning Unit With WIFI Capability - KFR-23IW - Return Unit

Quick Find Code: KFR-23IW/RETA

5 Year Warranty
Free Delivery!*
  • Compatible With Amazon Alexa and Google Assist
  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • New refrigerant (R32) non o-zone depleting
  • Anti-mould coating for hygienic operation

KFR-23IW/AG 9000BTU Wall Split Air Conditioning Unit With WIFI Capability - KFR-23IW - Return Unit

Quick Find Code: KFR-23IW/RETA

5 Year Warranty
Free Delivery!*
  • Compatible With Amazon Alexa and Google Assist
  • Adjustable fan speeds for rapid cooling or minimum noise
  • Oscillating air vanes for maximum dissipation of cold air
  • New refrigerant (R32) non o-zone depleting
  • Anti-mould coating for hygienic operation

£699.95
£559.96 (inc. VAT)

You save: £139.99

Show ex. VAT

SOLD OUT

Air Conditioning Centre
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Notify Me When Available

Used Grades Explained

Product Overview

Replacing the KFR-23IW/X1C is the NEW and IMPROVED KFR-23IW/AG 2019 Wall Split Air Conditioning Unit Compatible With AMAZON ALEXA and GOOGLE ASSIST!

Our Wall split air conditioning units are perfect for both residential and commercial use. The KFR23-IW/AG is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

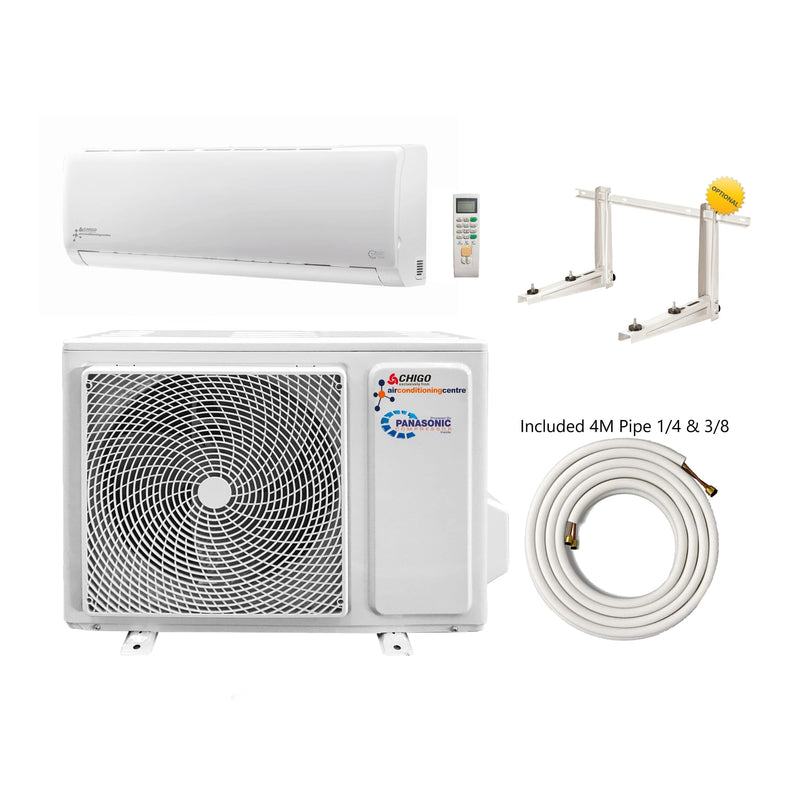

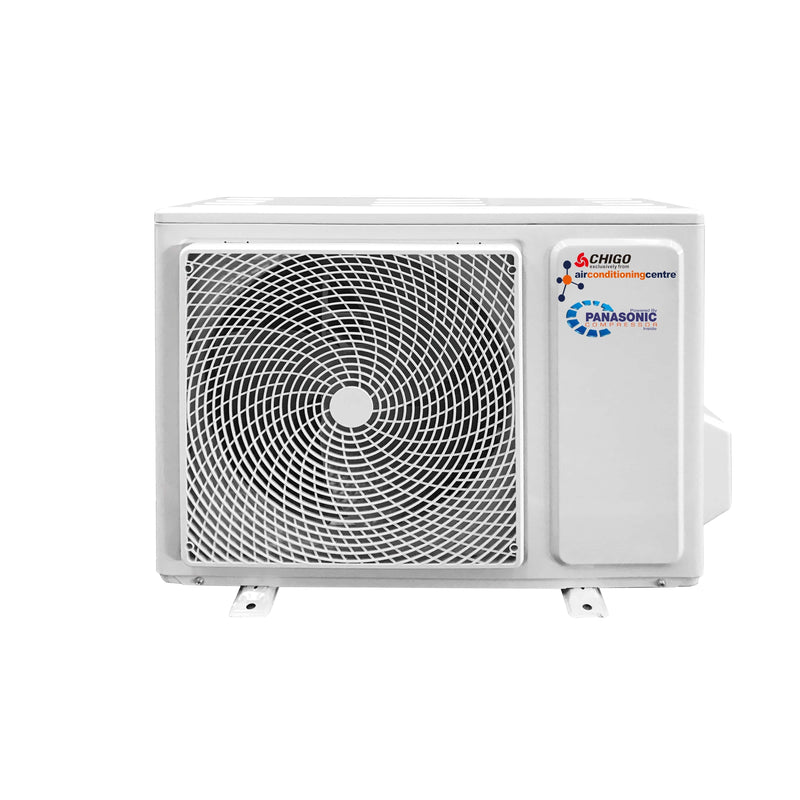

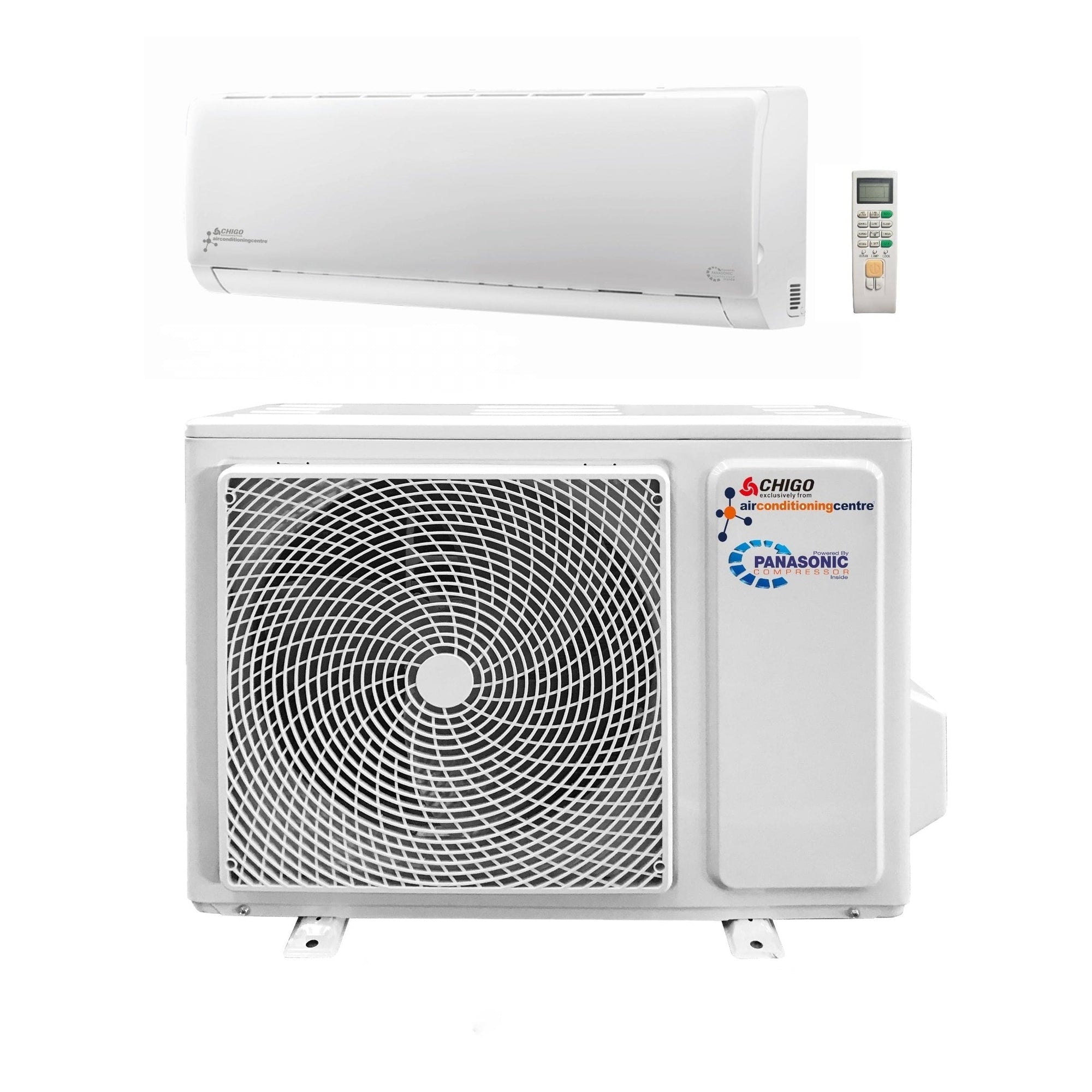

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

Warranty Conditions:

Must be installed by a qualified F Gas Engineer, with Installation Certificate & receipt. Must have an annual service with a valid invoice. Copy of Installation Certificate and each annual service invoice must be lodged with us as soon as available to uphold warranty conditions.

Specification:

  • Model: KFR-23IW/AG
  • Power Rating (PH-V-HZ) - 1/220-240V/50Hz
  • Capacity BTU/H (Cooling) KW - 9000 / 2.5 (3.3)
  • Capacity BTU/H (Heating) KW - 9000 / 2.5 (3.3)
  • Power Input (W) Cooling/Heating - 670-660 (1.2)
  • Current Input (A) Cooling/Heating - 3.0 - 2.9
  • SEER (BTU/HR.W) - 6.1
  • SCOP (W/W) - 4.0
  • Dehumidifactiom (L/H) - 0.9
  • Noise Level DB(A) (HI/M/LO) - 38 - 47
  • Noise Level DB(A) - 63
  • Indoor Airflow (M3/H) (HI/MO/LO) - 500 Max
  • Current Rating (A) Fuse Rating (Type D) - 7
  • Net Dimensions (MM) Indoor (W/D/H) - 780x256x202
  • Dimensions (MM) Outdoor (W/D/H) - 715x235x540
  • Net/Gross Weight (KG) Indoor - 10
  • Net/Gross Weight (KG) Outdoor - 25
  • Max Room Size (m2) - 13-25
  • Max Conservatory Size (m2) - 12

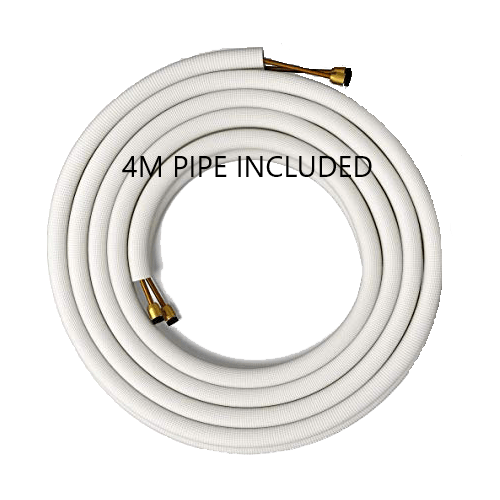

  • Pipe Length (M) - 4
  • Pipe Diameter Liquid/Gas (Inch) - 1/4 & 3/8
  • Temp Range ºC - 16-32
  • Operating Temp (Cooling/Heating) - -15/-10
  • Restart After Power Failure - Yes
  • Refrigerant Leak Detection & Self Diagnosis System - Yes

    Downloads

    Download KFR-23IW/AG Product Datasheet

    Specification

    Smart Home Compatible WithAmazon Alexa, Google Assistant
    Airflow500 m3/h
    Auto RestartYes
    BTU9000
    Cost Pence Per Hour21.1
    Dehumidifying FunctionYes
    Finish Or ColourWhite
    Fixed Or PortableFixed
    For Conservatories Upto m212 m²
    For Rooms Upto m225 m²
    Heating FunctionNo
    Installation Information Any Installation not Completed by a Qualified F-Gas Engineer Will Invalidate the Product Warranty
    LCD DisplayYes
    Maximum Set Temperature32 °C
    Minimum Set Temperature16 °C
    Minimum Voltage220 V
    MountingWall
    MPNKFR-23IW
    Noise Level Maximum63 dB
    Noise Level Max Indoor47 dB
    Noise Level Max Outdoor63 dB
    Noise Level Minimum38 dB
    Noise Level Min Indoor38 dB
    Pipe SuppliedYes
    power consumption670 W
    RefrigerantR32
    Remote ControlYes (Supplied)
    Smart Home CompatibleYes
    Supplied Pipe Length4 m
    Voltage240 V
    Wi Fi CompatibleYes
    Depth276 mm
    Depth Outdoor235 mm
    Height202 mm
    Height Outdoor540 mm
    Weight100 kg
    Weight Indoor Unit10 kg
    Weight Outdoor Unit25 kg
    Width780 mm
    Width Outdoor715 mm
