Greenbrook Lighting Connector Box 30A - CHOC30A

Product Overview

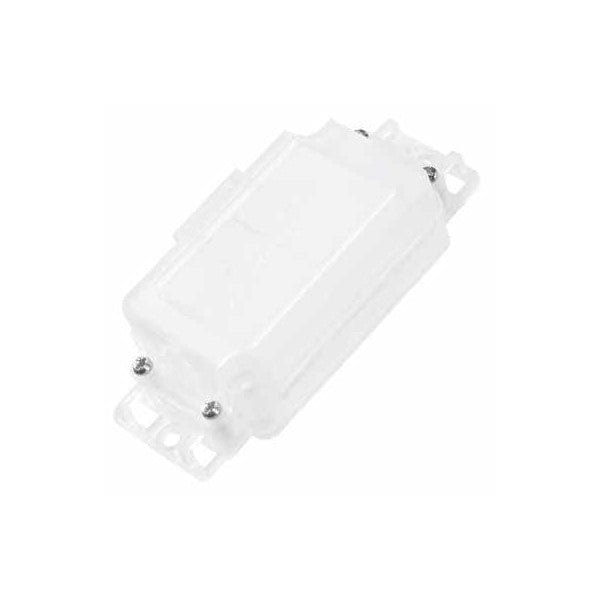

Greenbrook Lighting 30A Connector Box - CHOC30A

This Greenbrook 30A connector box is designed for the protection of electrical connections. It features easy to use external cable clamps. It is constructed from natural polypropylene and is maintenance free and tamperproof. It has a simple one piece snap cover with screw fittings. The connector will pass through a 50mm diameter hole and offers optional screw or cable tie box fixing.

Product Overview:

• Rated Voltage: 250V
• Terminal Block Size: 20A
• Temperature Range: -5 to 60°C
• Weight: 28g
• Dimensions: H28 x W110 x D49mm
• Material: Natural Polypropylene

Number of terminals that can fit inside CHOC30A when located on peg:

Horizontal Positioning

• 2 Amp - 8 Terminals
• 5 Amp - 6 Terminals
• 15Amp - 4 Terminals
• 30Amp - 4 Terminals

Vertical Positioning

• 2 Amp - 4 Terminals
• 5 Amp - 4 Terminals
• 15Amp - 2 Terminals
• 30Amp - 2 Terminals

Downloads

Download CHOC30A-Datasheet

Specification

Old GTIN	5012739607370
Depth	49 mm
Height	28 mm
Weight	0.02 kg
Width	110 mm
