Product Overview

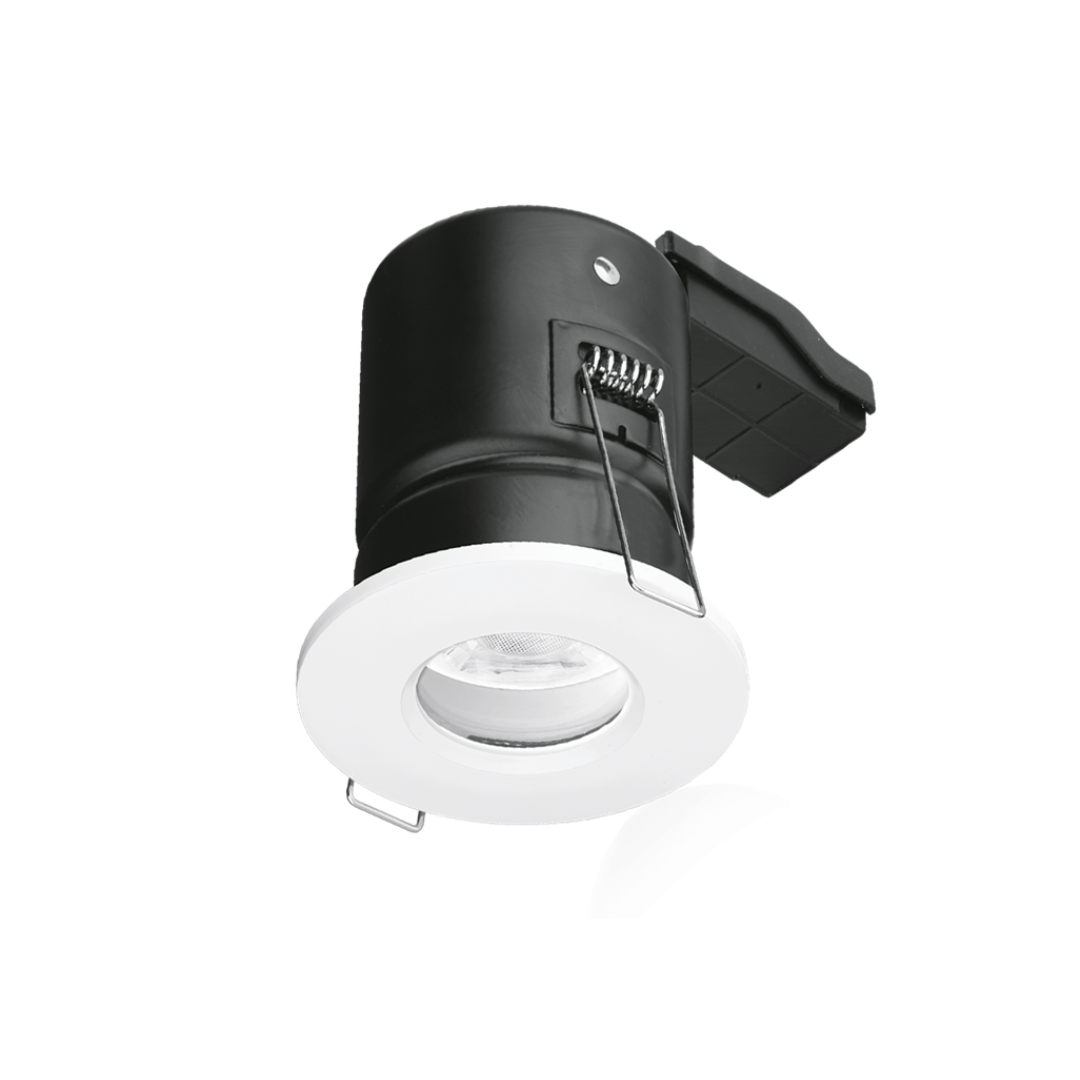

Featuring a loop-in/loop-out terminal block and a twist and lock retaining ring, the GU10 IP65 rated range of compact fire rated downlights provides a sharp scallop light effect. Integrated intumescent material completely seals the downlight and cut-out in the event of a fire. Tested in 30, 60 and 90-minute fire rated ceilings, the FD103 range is acoustic rated to maintain the ability for an internal or separating floor to provide sound insulation. The IP65 rated range is available in a white, polished chrome and satin nickel finish and comes with a 1 year guarantee.

• Lamp Type: GU10
• Material: Aluminium,Pressed Steel
• Overall Height (mm): 130 mm
• Acoustic_Rated: Yes
• Input Voltage Type: AC
• Loop-in/loop-out terminal block allows for quick and easy installation
• Push and clip lamp retaining ring
• Integrated intumescent material completely seals the downlight and cut-out in the event of a fire
• Lamp not included
• Registered Community Design 915509-0001/2/3
• Tested in 30, 60 & 90 minute fire rated ceilings - BS476 Part 21
• Tested to BS EN ISO 140-3:1995 & BS EN ISO 140-6:1998 (Acoustics) confirming that they maintain the ability for an internal or separating floor to provide sound insulation
• Overall Height (mm): 130 mm
• 1 year guarantee
