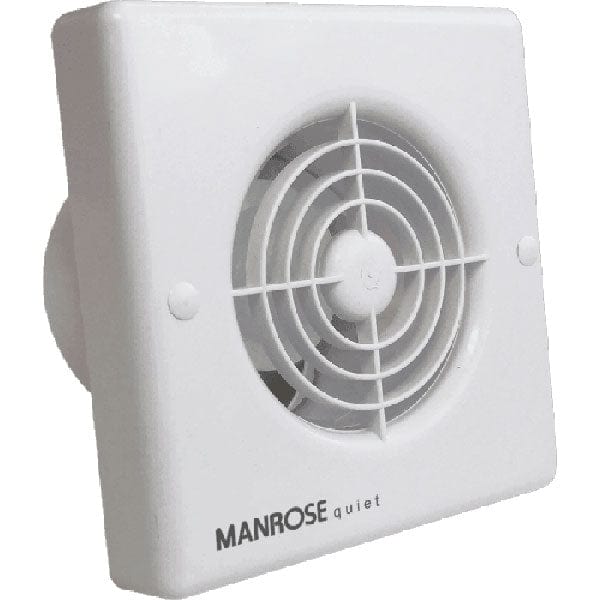

Manrose QF100P 4.8W Quiet Axial Bathroom Extractor Fan with Pullcord Switch - Return Unit, Image 1 of 1
Manrose QF100P 4.8W Quiet Axial Bathroom Extractor Fan with Pullcord Switch - Return Unit

Quick Find Code: QF100P/RETA

3 Year Warranty
Free Delivery on orders over £50*
  • Built-In Pull Cord - Allows for Easy Control
  • Decibel Level of ONLY 27dB(A) - Reduction In Comparison To standard 4″ (100mm) Domestic Fans
  • Warranted for A Minimum of 30,000 Hours or 3 Years
  • High ABS Thermoplastic for Strength, Durability, Aesthetics & Easy Cleaning
  • The Most Environmentally Friendly Fan In The Manrose Range

Manrose QF100P 4.8W Quiet Axial Bathroom Extractor Fan with Pullcord Switch - Return Unit

Quick Find Code: QF100P/RETA

3 Year Warranty
Free Delivery on orders over £50*
  • Built-In Pull Cord - Allows for Easy Control
  • Decibel Level of ONLY 27dB(A) - Reduction In Comparison To standard 4″ (100mm) Domestic Fans
  • Warranted for A Minimum of 30,000 Hours or 3 Years
  • High ABS Thermoplastic for Strength, Durability, Aesthetics & Easy Cleaning
  • The Most Environmentally Friendly Fan In The Manrose Range

£29.50
£26.36 (inc. VAT)

Show ex. VAT

Manrose

Notify Me When Available

Alternative In-Stock Product
Knightsbridge 100mm/4 inch LED Backlit Extractor Fan with Humidistat and Overrun Timer - Black and Stainless Steel - EX004H

Knightsbridge 100mm/4 inch LED Backlit Extractor Fan with Humidistat and Overrun Timer - Black and Stainless Steel - EX004H

In Stock

£49.95

View

Used Grades Explained

Product Overview

Manrose QF100P 4.8W Quiet Axial Bathroom Extractor Fan with Pullcord Switch


The Manrose Quiet Fan is the latest in domestic ventilation to incorporate a high extraction whilst producing an incredibly quiet running volume. Designed for wall and ceiling mounting, this comprehensive range is ideal for bathrooms and toilets. The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output.


Specification

  • Mounting: Wall
  • Noise: 27 dB(A)
  • Pull Cord: Yes
  • Hole Size: 4"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Extraction Rate: 21 litres per second
  • Maximum Pressure: 23 p.a.
  • Fan Speed: 2300 r.p.m.
  • Maximum Operating Temperature: 40°C
  • High quality ball bearing, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
  • Manufactured using high ABS thermoplastics for strength and durability
  • Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4” (100mm) domestic fans
  • An impressive extraction rate of 75m3/hr, 21 litres per second
  • Low energy motor with a maximum consumption of 4.8 Watts
  • The most environmentally friendly fan in the Manrose range with an SFP of 0.24W/l/s
  • Complete with integral backdraught shutters
  • Complies with both Part F & L
  • Dimensions: Height: 163mm x Width: 163mm x Depth: 111mm

Downloads

Download QF100P Product Datasheet

Specification

Airflow75 m3/h
Applicable AreaBathroom, Toilet
Backdraft ShutterYes
Extraction Rate Litres Second21 L/s
Extractor TypeAxial
Fan Size Diameter4 in
Finish Or ColourWhite
IP RatingIP44
Lip Depth28 mm
Minimum Voltage220 V
MountingCeiling, Wall
MPNQF100P
Number Of Speeds1
power consumption7 W
Pull CordYes
TimerNo
Voltage240 V
Height163 mm
Length111 mm
Weight0.67 kg
Width163 mm
