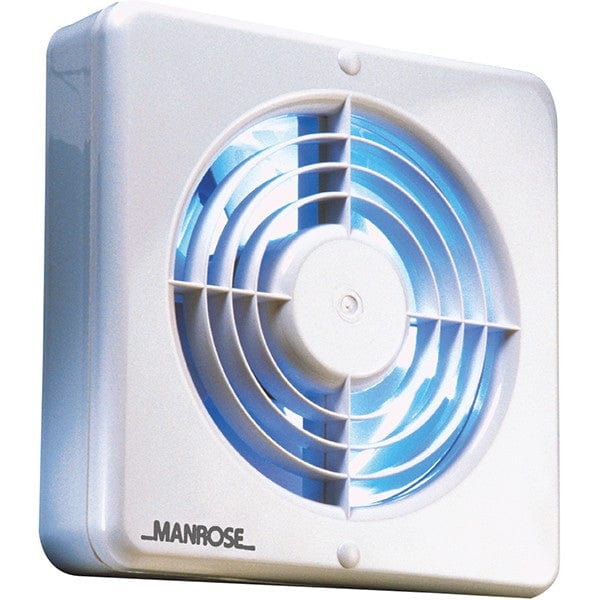

Manrose 150mm (6inch.) Axial Extractor Fan with Timer & Pullcord - XF150BTP - Return Unit

Product Overview

The Manrose 150mm Extractor Fan is designed for wall, ceiling or window mounting, the efficient and easy to install range of 150mm (6") extractor fans are available in twelve options, and are an alternative style and design to the traditional 6" kitchen style. The fans are suited to larger bathrooms, utility rooms, shops, offices, restaurants, etc. Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life. These fans are double insulated and do not require anearth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should not be accessible to a person using either the shower or the bath and mounted a minimum of 1.8 metres from the floor. XF150B Series designed for wall or ceiling mounting (pullcord wall-mounting only). Wall fixing kit is available separately The SVK (1280).

• Single phase consuming 25 Watts
• Extract rate for the 150B Series is 230m³/hr, 64 litres per second
• Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
• Designed to comply with the Building Regulations on Ventilation (F1)
• Mounting: Wall
• Noise: 40.0 dB(A)
• Pull Cord: Yes
• Hole Size: 6"
• Type of Extractor: Axial
• Number of Speeds: 1
• Extraction Rate: 64 litres per second
• 150mm (6")
• Maximum pressure: 50 p.a.
• Fan speed: 2400 r.p.m.
• Maximum operating temperature: 40°C
• Dimensions: Height: 203mm x Width: 203mm x Depth: 95mm

• Application: Bathroom
• Wattage: 25
• Voltage: 220-240V - AC. 50Hz
• Width: 203
• Height: 203
• Colour: White
• Manufacturer Code: XF150BTP
